Autorefractor Keratometer (Auto Ref Keratometer)

Common vision problems such as myopia (nearsightedness) or hyperopia (farsightedness) are the result of refractive error. Autorefractors are used to measure the degree of refractive error in the eye, and are suited well toward applications such as differentiating corneal from lenticular aberrations, and assessing pre-and-post refractive surgery patients. The patient focuses their vision on a fixation target such as a hot-air balloon floating over land. Like many ophthalmology instruments, they have spherical and cylindrical measurement ranges of -30 to +25D/±10D respectively. As the line between autorefractor and keratometer is often blurred, the customer should be aware of systems that have separate measurement ranges for autorefraction and keratometry.

CompanyTopcon Medical SystemsTopcon Medical SystemsTopcon Medical SystemsTopcon Medical Systems
ItemKR-800S Auto Kerato-RefractometerCataract WorkstationKR-800 Auto Kerato-RefractometerKR-1 Auto Kerato-Refractometer
Price
Vendor Product PageCompany Product PageCompany Product Page

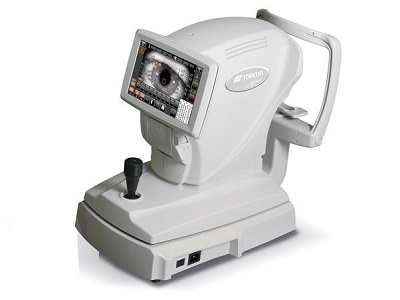

DescriptionThe 5-in-1 KR-800S Auto Kerato-Refractometer incorporates Topcon's Rotary Prism technology for unparalleled accuracy and consistent measurements. It features several new tests, including a visual acuity (VA) check for near and far distance, contrast ...

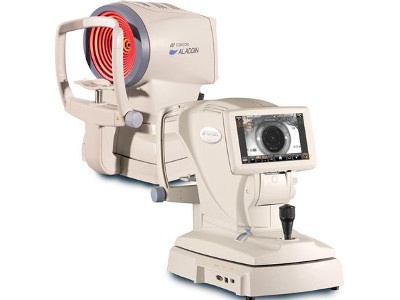

Save time, money and space while improving cataract surgery outcomes with the Topcon Cataract Workstation. The Topcon Cataract Workstation combines two multi-function instruments to streamline cataract surgery work-up and post-operative follow-up.

...

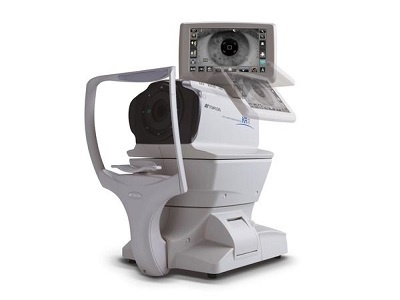

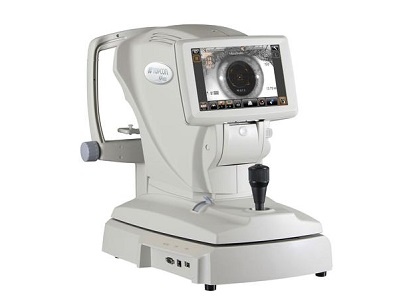

The KR-800 Auto Kerato/Refractometer incorporates the very latest in design technology and ergonomics. The KR-800 features a bright, new 8.5 inch color touchscreen panel to control the main functions and an improved joystick operation due to a 23% ...The new KR-1 Auto Kerato-Refractometer features fully automated operation with an easy-to-use color touch screen, a 360 degree rotatable monitor, and a flexible layout and space saving design. The patented Prism measuring system ensures fast, ...
Features
  • Accurate objective measurement (REF, KRT, R/K)
  • Confirm objective and subjective visual acuity under glare conditions before cataract surgery
  • Easy-to-use, fast measurements
  • Compact, user-friendly design with wide 8.5 inch color touchscreen display
  • Contrast sensitivity testing
  • Grid chart test
  • Topcon's exclusive Rotary Prism technology for unparalleled accuracy
  • Topcon KR-800S Auto Kerato Refractometer
  • Aladdin Biometer with corneal topography
  • Bright, new 8.5 color touch-screen display
  • Compact, modern and ergonomic design
  • Improved joystick operation due to a 23% lighter weight design
  • Ease of use and operability
  • Topcon's Rotary Prism technology for highly accurate keratometric and refractive measurements
  • Flexible layout and space saving design
  • 360° rotatable monitor
  • Easy-to-use color touch panel
  • Comfortable design for patients
  • Patented Prism measuring system ensures stable measurement accuracy
Product NumberKR-800SInquireInquireKR-1
InterfaceInquire2 USB, LANSeamless connection to other Topcon instrumentsInquire
Weight (kg)16 kg18 kg, 16 kg15 kg19.9 kg
Dimension (inches)(WxDxH) 12-13 x 20-21 x 17-18 inInquire14.61- 13.42 inches (W) 20.51-21.18 inches (D) 17.6- 18.78 inches (H)275 (W) x 509 (D) x 432~464 (H) mm
Measurable RangeSphere Range: -18 to +18 D (0.25 D steps)
Cylinder Range: 0 D to 8 D (0.25 D steps)
Axis Range: 0°to 180° (1°/5° steps)
InquireInquireHyperopia: 0 to +22D (0.12D/0.25D steps)
Myopia: 0 to -25D (0.12D/0.25D steps)
Astigmatism: 0 to ±10D (0.12D/0.25D steps)
Axial angle: 0 to 180° (1°/5° steps)
Pupil Diameter2 mmInquireInquireø2.0 mm
Power (V)100-240 V AC, 50-60 HzInquire100-240 V AC
50-60 Hz
30-70 VA
100-240V AC, 50/60Hz, 60VA/100VA
DisplayInquire10.1 inch color touch screenInquireInquire
Get quoteView Company Product PageView Company Product Page
