OCULUS Pentacam® and Pentacam® HR models from OCULUS, Inc.

View other Optical Pachymetry / Optical Pachycam
  • Comprehensive Eye Scanner
  • Principle of Measurement
  • Scheimpflug Image

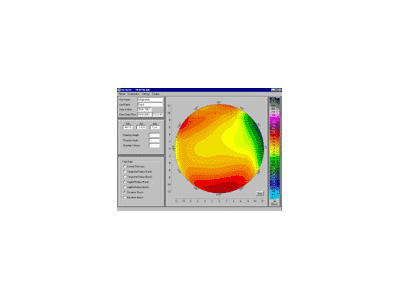

  • Corneal Topography

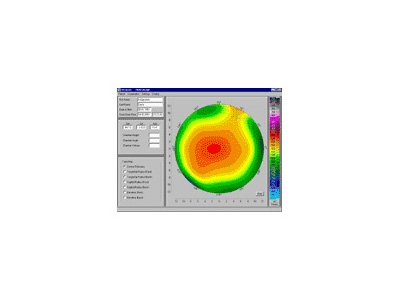

  • Pachymetry

Description

The Pentacam® is a rotating Scheimpflug camera which captures Scheimpflug images of the anterior eye segment. It is designed for the needs of Refractive, Cataract and Glaucoma surgeons as well as for the needs of Optometrists The Scheimpflug technique provides sharp and crisp images that include information from the anterior corneal surface up to the posterior crystalline capsule. The Pentacam® provides a fully automatic analyzing, mapping and depiction of the complete anterior eye segment to save time and assure user independence.

The key advantages of the rotating imaging process are the precise measurement of the central cornea, the correction of eye movements via a second pupil camera, the easy operation for the users and the easy fixation for the patients and the extremely short examination and processing time. Pentacam® is DICOM compatible.

  • Detailed Specifications
  • ItemOCULUS Pentacam® and Pentacam® HR models
  • CompanyOCULUS, Inc.
  • PriceGet quote
  • FeaturesThe Pentacam® calculates a three dimensional mathematical model of the anterior segment to provide the following information:
    • anterior and posterior corneal topography and elevation maps
    • corneal pachymetry from limbus to limbus, absolute and relative
    • 3D anterior chamber analyzing, chamber angle in 360°, chamber volume, chamber depth map
    • 3D lens density quantification and PNS (Pentacam Nucleus Staging) - automatic Keratoconus detection and quantification
    • tomography - several compare display to monitor progression
    • corneal wavefront software of the anterior, posterior and total cornea, e.g. Z4,0 for optimized IOL selection to reduce spherical aberrations
    • improved IOL-calculation for post LASIK, PRK and RK patients
    • linked to many commercially available IOL calculators
    • several software modules such like Holladay Report with EKR's, Belin/Ambrosio Enhanced Ectasia detection, Contact Lens fitting software, pIOL simulation software
    • available in different software and hardware configurations for every need and budget
  • ApprovalUS FDA
  • InterfaceUSB, DICOM compatible
  • DisplayVarious topographic displays, such like axial (sagittal) anterior & posterior, local (tangential) anterior & posterior, refractive power (snells law), KPD, EKR, True Net Power, anterior and posterior elevation (different reference bodies such like e.g. BFS etc) anterior & posterior; various pachymetry displays, relative and absolute pachymetry; anterior chamber depth map; lens density map; CL distance map (fluo simulation); several difference and compare displays for all available maps, Holladay Report, Holladay EKR Detail Report, Pachymetric, Refractive, Topometric, Zernike Analysis (corneal wavefront), Belin/Ambrosio Enhanced Ectasia, Contact Lens fitting, pIOL fitting, Virtual Eye, several large color maps, several 4 map composite displays.
  • Optical PachymetryPachymetric measurements of the cornea are taken with the Scheimpflug camera and calculated from the true elevation points of the corneal front and back surfaces.
